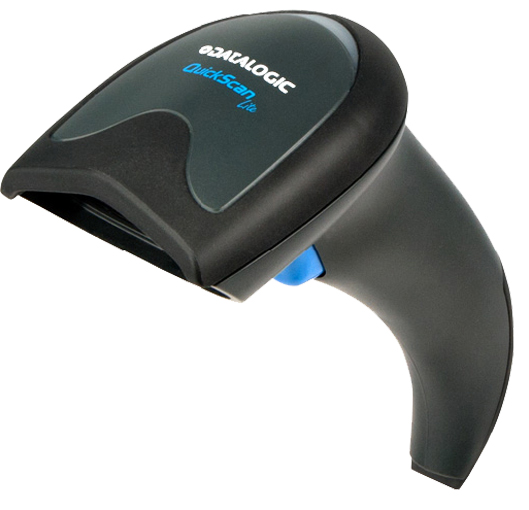

Datalogic QuickScan QW2400
2D Barcode Scanner



● 2D (Imager) Barcode Reader
● Support 1D, 2D, Postal Codes And Stacked Codes
● Wide VGA (640 x 480 Pixel)
● 0,1 mm (4 mil) resolution (1D)
"Green Spot" Light For Good Read Feedback
● IP42 Standard
● Schockproof to 1,5 meters
● USB Interfaces

 Model  Interfaces
 QW2420-BK  USB
 QW2470-BK  RS-232C, Keyboard Wedge
 Reading Performance
 Image Sensor Wide VGA (640 x 480 Piksel)
 Light source Aiming: 1 Blue LED
Illumination: 350-770 nm White LED
 Motion Tolerance 20 IPS
 Print Contrast (Minimum) 20%
 Reading Angle Pitch: ±65°; Roll (Tilt): ±360°, Skew (Yaw): ±65°
 Indicators (LED) Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED
 Resolution Code 39: 0.102 mm (4 mil)
PDF417: 0.168 mm (6,6 mil)
QR/Data Matrix: 0.191 mm (7,5 mil)
 Interface
 Interfaces QW2420-BK: USB
QW2470-BK: RS-232 / Keyboard Wedge
 Physical
 Height 171 mm
 Depth 71 mm
 Width 66 mm
 Weight 120 gr
 Color Black
 Electrical
 Current Operating (Typical): 170 mA @5VDC
Standby Mode: 90 mA @5VDC
 Input Voltage 5 VDC +/- 10%
 Environmental
 Ambient Light 92.000 Lux (Max.)
 Operation temperature 0°C ~ 50°C
 Storage temperature -20 °C ~ 70 °C
 Humidty %0 ~ %95 (Non Condensing)
 Drop Durability 1,5 meter
 IP Standard IP42
 ESD Protection (Air Discharge) 16 kV
 Scanning Capability
 1D Linear Barcodes Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
 2D Codes Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code
 Postal Codes Australian Post; British Post; Canadian Post; China Post; Japanese Post; IMB; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
 Stacked Codes EAN/JAN Composites; GS1 DataBar Composites;GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional;MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
 Scanning Distances
 Scanning Distances Code 39: (5 mils) 0,5 cm ~ 12,5 cm
EAN/UPC-A: (13 mils) 0,5 cm ~ 30 cm
PDF417: (6,6 mils) 1 cm ~ 9,5 cm
DataMatrix: (10 mils) 1 cm ~ 9,5 cm
QrCode: (20 mils) 1 cm ~ 14 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use.
 Environmental Compliance Complies to China end EU RoHS
 Utilities
 DATALOGIC ALADDIN™ Datalogic Aladdin configuration program is available for download at no charge
 OPOS / JAVAPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge
 REMOTE HOST DOWNLOAD Lowers service costs and improves operations.
