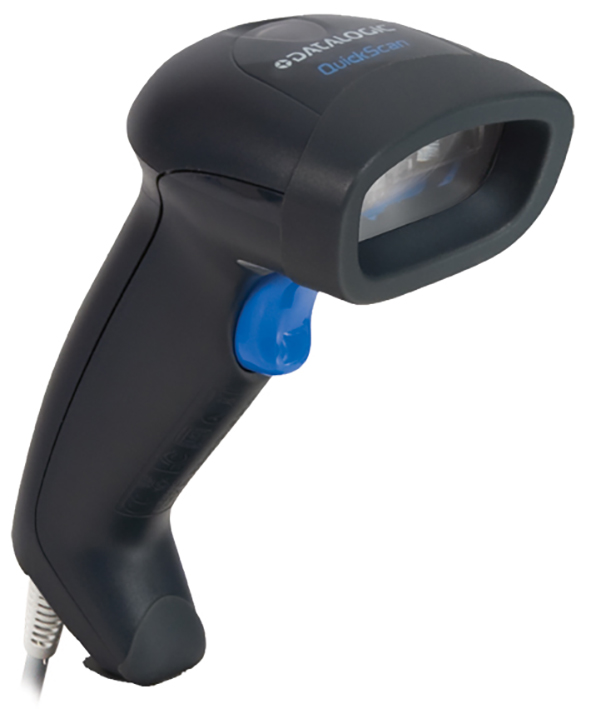

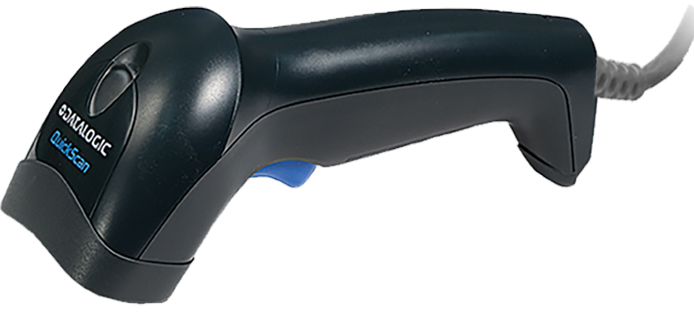

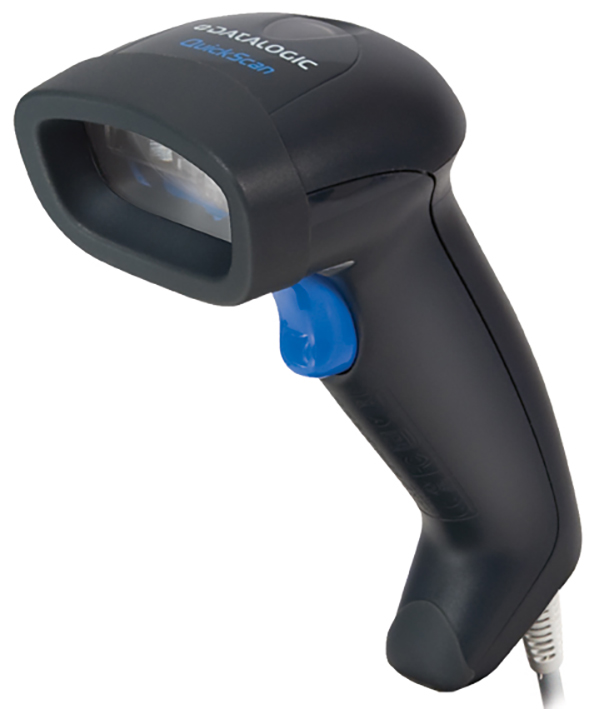

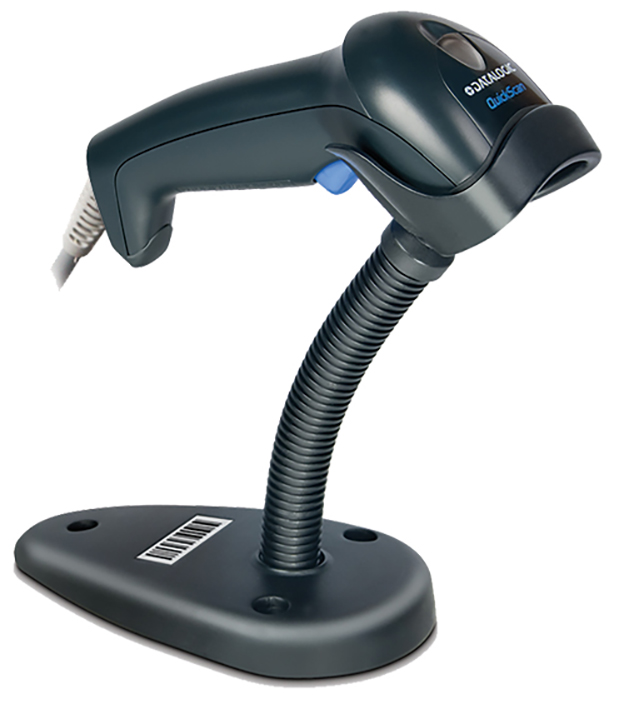

Datalogic QuickScan QD2300
Single Line Laser Barcode Scanner



● 1D Single Line Laser Barcode Scanner
● 100 Scan per second
● 0,130 mm (5 mil) resolution
● 5 ~ 270 mm scanning distance
● IP42 Standard
● Replacable front window
● Schockproof to 1,5 meters

 Reading Performance
 Light source 650 nm VLD
 Print Contrast (Minimum) 30%
 Scan Rate 100 Scan/Sec
 Scan Angle Pitch: ± 65°, Roll (Tilt): ± 30°, Skew (Yaw): ± 60°
 Indicators (LED) Adjustable Beeper Tone , Good Read LED, Good Transmission
 Çözünürlük 0.130 mm  (5 mil)
 Decoding Capability
 1D Linear barcodes Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes
 Postal Codes China Post
 Electrical
 Input Voltage 5VDC ±%10
 Power consumption Operation Mode: 100 mA 5VDC
Standby Mode: 35 mA 5VDC
 Interface
 Interfaces Keyboard Wedge, RS-232, USB  (Multi Interfaces)
 Environmental
 Light Levels 64.575 Lux
 Operation temperature 0°C ~ 50°C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 Drop Durability 1,5 meter
 IP Standard IP42
 ESD Protection (Air Discharge) 20 kV
 Physical
 Color Black
 Dimensions 17 mm x 71 mm x 66 mm
 Weight 127,6 gr
 Scanning Distances
 Scanning Distances 5 mil: 20 mm  ~ 130 mm
7,5 mil: 10 mm  ~ 200 mm
10 mil: 5 mm  ~ 220 mm
13 mil: 5 mm  ~ 245 mm
20 mil: 30 mm  ~ 270 mm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China end EU RoHS
 Laser Classification EN 60825-1 Class 2; IEC 60825-1 Class 2
P.S: Caution Laser Radiation
