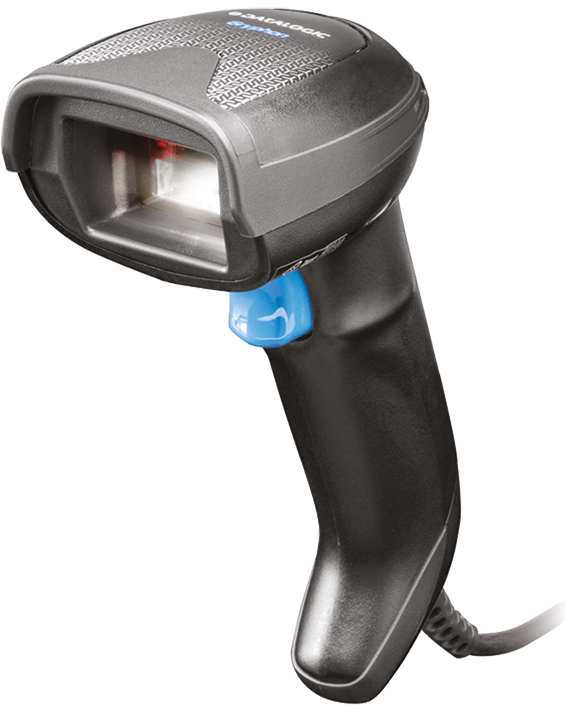

Datalogic Gryphon GD4500
2D Barcode Scanner



● Supported 1D, 2D, Postal, Stacked and Digimarc Codes
● 1280 x 800 Pixel Scanning
● 0,1 mm (4 mil) Resolution
● Reading from LCD Screens
● IP52 Standart
● Schockproof to 1,5 meters
● USB Interface

 Reading Performance
 Imager Sensor 1280 x 800 pixel (1 Megapixel)
 Image Capture (Graphic format) BMP, JPEG, TIFF; Greyscale: 256, 16, 2
 Light source Aiming: 650 nm VLD
Illumination: Warm White; Hyper Red LED for Digimarc
 Motion Tolerance 35 IPS
 Print Contrast (Minimum) 15%
 Scan Angle Pitch: ±65°; Roll (Tilt): ±360°; Skew(Yaw): ±65°
 Indicators (LED) Beeper (Adjustable Tone); Datalogic Three Green Lights (3GL) Good Read Feedback: Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs
 Resolution 1D Linear: 0,102 mm (4 mils)
Data Matrix: 0,195 mm (7,5 mils)
PDF417: 0.127 mm (5 mils)
 Interfaces
 Interfaces GD5420: USB
GD5490: RS-232, USB, Keyboard Wedge MultiInterface
 Physical
 Height 166 mm
 Width 68 mm
 Depth 109 mm
 Weight 161 gr (Without Stand)
 Color Black
 Electrical
 Input voltage GD5420: 5 VDC
GD5490: 4,5 - 14 VDC
 Current Operation Mode: <300 mA @5V, <200 mA @12V
Standby Mode: <90 mA @5V, <50 mA @12V
 Environmental
 Ambient Light 0 ~ 100.000 Lux
 Drop Resistance Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
 ESD Protection (Air Discharge) 16 kV
 Humidity %0 ~ %95 (Non Condensing)
 IP Standard IP52
 Operation temperature 0°C to 50°C (32°F to 122°F)
 Storage temperature -20°C to 70°C (-4°F to 158°F)
 Decoding Capability
 1D Linear Barcodes Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
 2D Barcodes Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot code
 Postal Codes Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)
 Stacked Codes EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
 Digital Watermarking Digimarc Barcodes
 Scanning Distances
 Scanning Distances (1D) Code 39: (5 mils) 7,0 cm to 38,0 cm (2,7 to 14,9 in)
Code 39: (10 mils) 2,2 cm to 58,0 cm (0,8 to 22,8 in)
Data matrix: (10 mils) 5,5 cm to 27,0 cm (2,2 to 10,6 in)
Data matrix: (15 mils) 2,8 to 41,0 cm (1,1 to 16,1 in)
EAN-13: (13 mils) 1,0 cm to 71.0 cm (0,4 to 27,9 in)
PDf417: (10 mils) 2,5 cm to 41,0 cm (1,0 to 16,1 in)
Qr Code: (10 mils) 5,5 cm to 24,0 cm (2,2 to 9,5 in)
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China RoHS, Complies to EU RoHS
 Laser Classification Caution Laser Radiation - Do not stare into beam; IEC 60825 Class 2
 Utility
 DataLogiC aLaDDin™ Datalogic Aladdin configuration program is available for download at no charge.
 oPos / JaVaPos JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
 Remote host DoWnLoaD Lowers service costs and improves operations.
