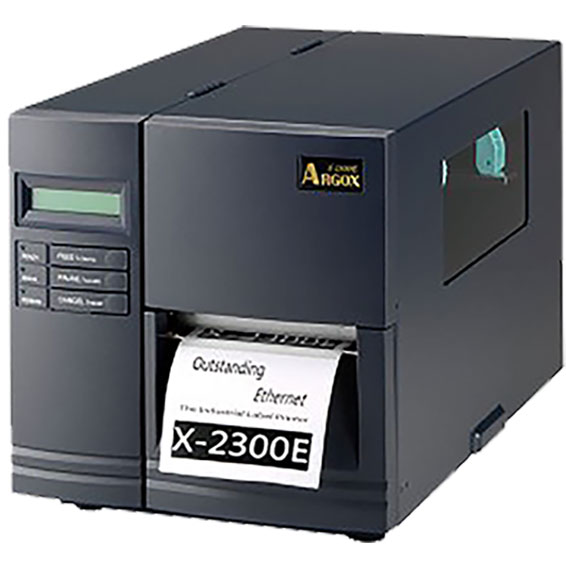

Argox X-2300E
Industrial Barcode Printer



● Direct Thermal And Thermal Printing
● 203 DPI Printing Resolution
● Max. 104 mm Printing Width
● Max. 2540 mm Printing Length
● Max. 152 mm / Sec Printing Speed
● 16 MB DRAM and 8 MB Flash ROM
● PPLA, PPLB and PPLZ Support
● LPT, RS-232C, USB, Ethernet And PS/2 Port
● LCD Display
● PS/2 interface for standalone operation
● For heavy duty labeling demands

 Operational
 Printing method Direct thermal and thermal transfer
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed (Maximum) 152 mm/saniye
 Printing length 13 ~ 2540 mm
 Printing width 25 mm ~ 104 mm
 Memory 16 MB DRAM, 8 MB Flash ROM
 Proccessor 32 bit RISC micro proccessor
 Operation interface 3 Button (Feed, Pause and Cancel)
3 LED (Ready, Media and Ribon)
 Communication interface Centronics Parallel, Serial Port (RS-232C) , USB 2.0 Ethernet and PS/2 port
 Sensor Reflective and transmissive media sensor (Movable)
Head open switch sensor
Ribbon end sensor
 Print directions 0, 90, 180, 270 degree
 Agency listing CE, FCC, cTUVus, CCC, RoHS
 Physical
 Width 250 mm
 Height 263 mm
 Length (Depth) 418 mm
 Weight 11 kg
 Material Metal
 Electrical
 Power input type Power Cable
 Power source (Input) 100 ~ 240V, 5A, 50/60 Hz
 Environmental
 Operation temperature 4 °C ~ 38 °C
 Storage temperature -20 °C ~ 50 °C
 Humidty %0 ~ %90 (Non Condensing)
 Label
 Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper
 Width 25,4 mm ~ 112 mm
 Thickness 0.0635 ~ 0.254 mm
 Roll Inside diameter 25,4 mm
 Roll Outside diameter 177,8 mm (Maximum)
 Ribbon
 Type Wax, Wax/Resin and Resin
 Ink side Inside / Outside
 Width 25,4 mm ~ 101,6 mm
 Length 360 Meter (Max.)
 Roll Inside diameter 25,4 mm
 Roll Outside diameter 76 mm (Max.)
 Software
 Windows drivers Windows XP / Vista / 7 / 8 / 8.1, Windows Server 2003 / 2008 / 2012
 Label Design programs Bartender UltraLite (Free)
 Utility programs Printer Utility and Font Utility
 Supported barcode printing language PPLA and PPLB
Supported graphics formats PPLA: PCX, BMP, IMG and HEX formats
PPLB: PCX and binary raster
PPLZ: GRF, Hex and GDI
 Supported Barcode Types
 1D

PPLA: Code 39 , Code 93, Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13,UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 , Random Weight, Plessey, HBIC, Telepen, FIM, UPC2, UPC5, GS1 Data Bar

PPLB: Code 39 (standard/with checksum digit),Code 93, Interleaved 2 of 5 (standard/with checksum digit/with human readable check digit), EAN-8 (standard/2 digit addon 5 digit add-on), EAN-13 (standard/2 digit add-on/5 digit add-on), UPC-A (standard/2 digit add-on/5digit add-on), UPC-E (standard/2 digit add-on/5 digit add-on), Postnet, Codabar, Code 128 subset A/B/C, Code 128 UCC (Shipping Container Code), Code 128 Auto, German, Postcode, Matrix 2 of 5, UCC/EAN 128, UPC Interleaved 2 of 5, GS1 Data Bar

PPLZ: Code 39 (standard/with checksum digit), Code 93, Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13, UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, Code 128 Auto, UPC/EAN-Extension, Plessey, Industrial 2 of 5, Standard 2 of 5, Logmars, MSI, Code 11

 2D

PPLA/PPLB: MaxiCode, PDF417, Data Matrix (ECC200 only), QR code, Composite codes

PPLZ: MaxiCode, PDF417, Data Matrix (ECC200 only), QR code

 Accessories
 Optional Items Guillotine cutter
Rotary cutter
Dispenser Kit
Rewinder
Media Stacker
ArgoKee keyboard
 Turkish
 Data Sheets
 English
 Data Sheets
 Users Manual
 Seagull Windows Driver  Win XP / Vista / 7 / 8 / 8.1 / Win 10, Windows Server 2003 / 2008 / 2012 (32 Bit & 64 Bit)
 Bartender UltraLite  Label Design and Printing Software
 Printer Utility  Printer Configuration Software
 Font Utility  Font Create / Download Software
 S.D.K  Software Developement Kit
