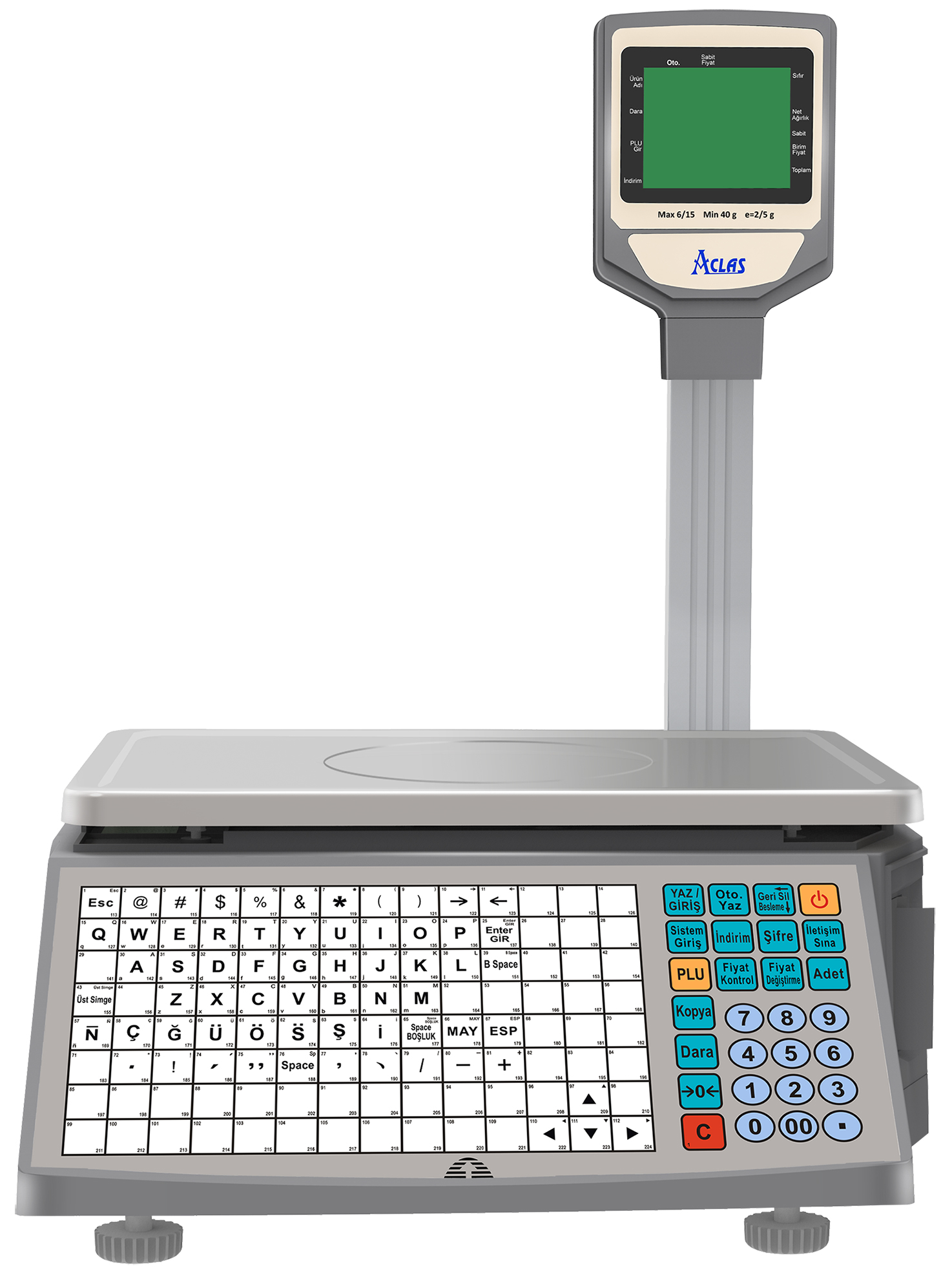

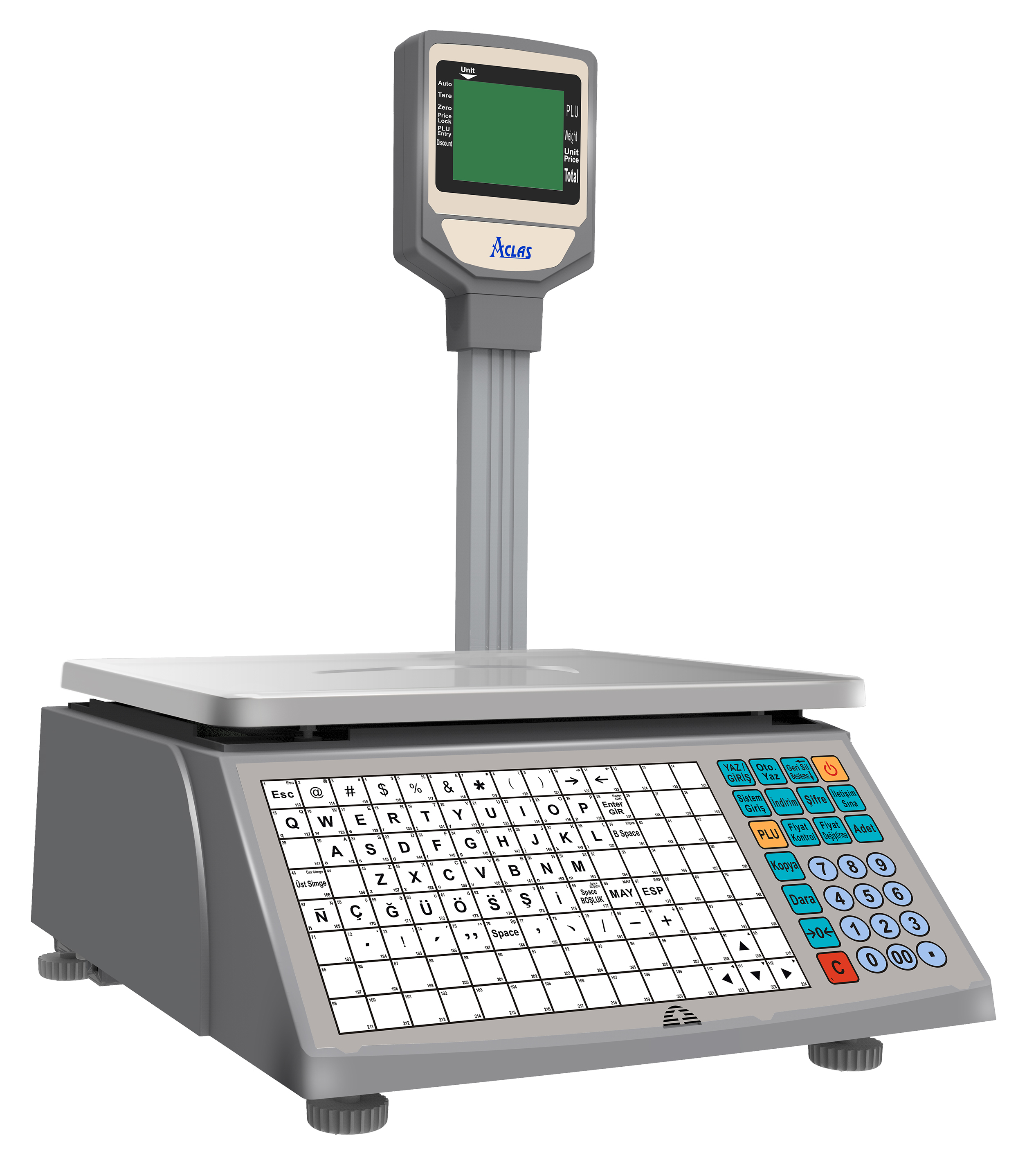

Aclas LS2
Barcode Label Printing Scale



● Max. 15 Kg or 30 Kg Weighing options
● High speed direct thermal printing
● 12.000 PLU Capacity
● 2 Lines LCD Display With Backlight
● 112 X 2 Keypad
● RS232 and Ethernet connection options

 Models  Weighing Options LCD Display
 LS2XR  6 / 15 Kg  532X264 Pixel
 15 / 30 Kg
 Operational
 Weighing Range Model-1 6 / 15 Kg.
Model-2 15 / 30 Kg.
 Weighing Sensitivity Model-1 2 / 5 gr
Model-2 5 / 10 gr
 Weighing Tare Model-1 5.998 Kg
Model-2 14.995 Kg

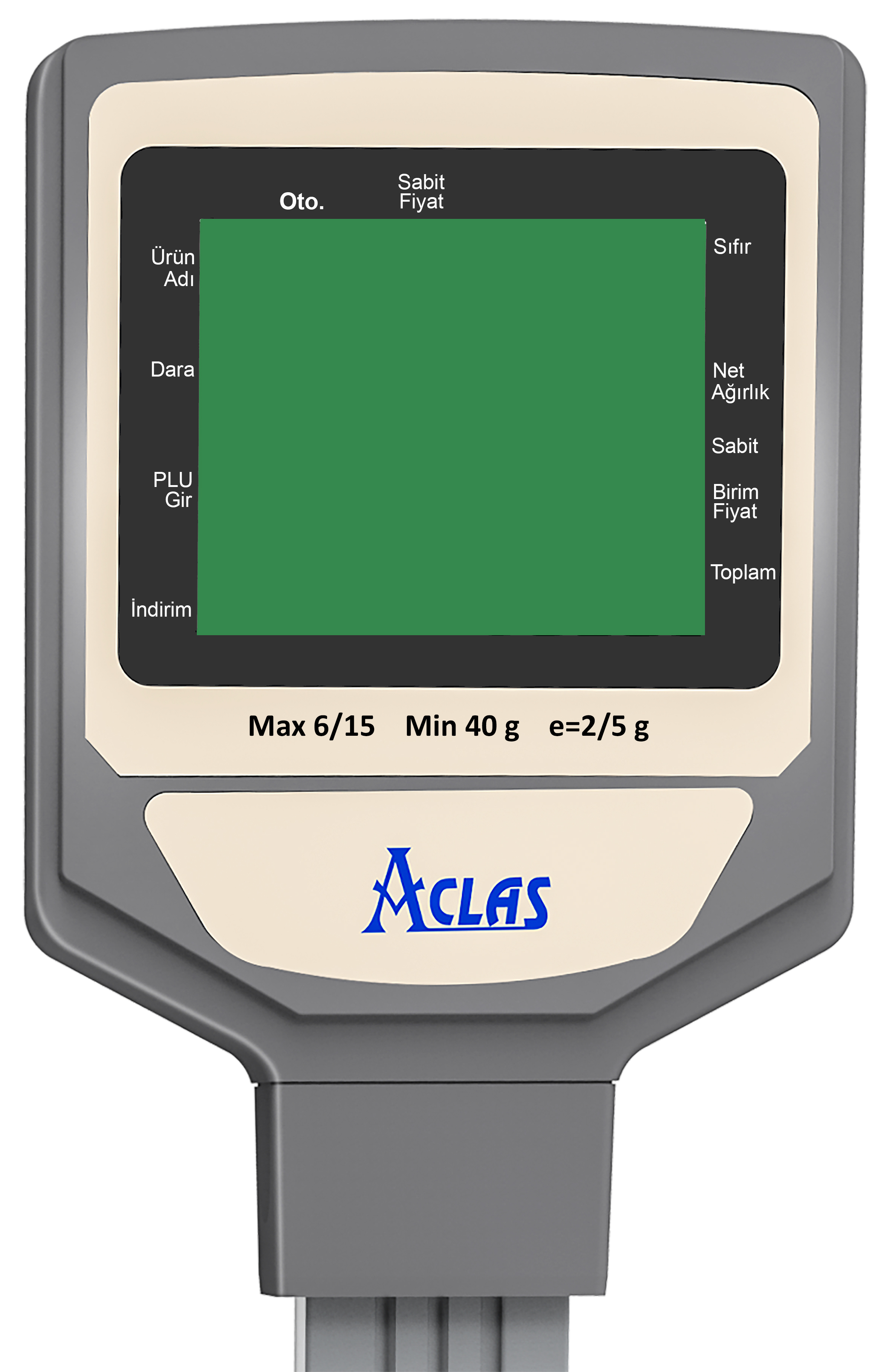

 LCD Display Position Top
Type Rectangle
Line Quantity 2
Resolution 32 X 264 Pixel
Backlight Avalaible

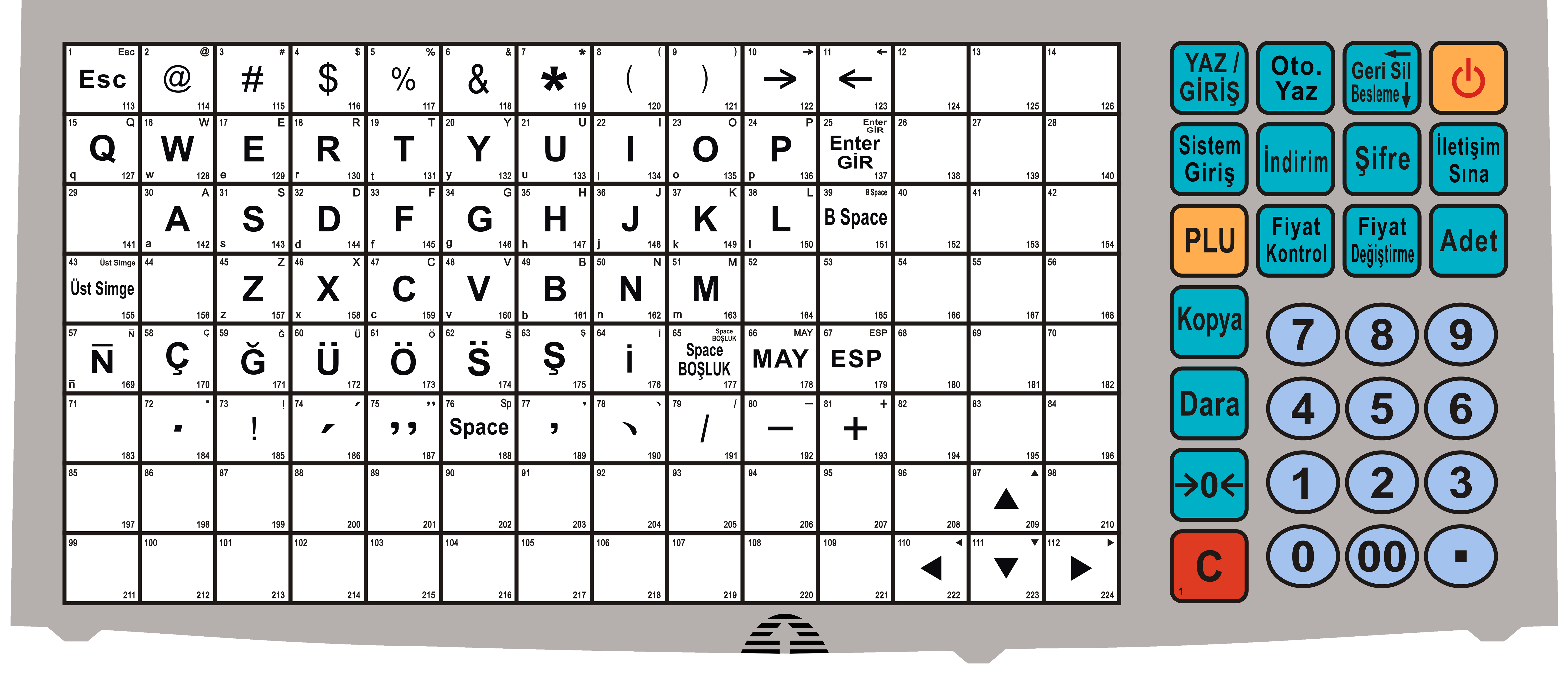

 Keypad 112 X 2
 Internal Resolution 1 / 30.000
 Printing width 56 mm (203 Dot/Line)
 Label Width 61,5 mm (±0,5 mm)
 Printing Speed 80 mm /Second
 Printer Life 50 Km.
 Paper Type Label, Continous Thermal Paper, Linerless Label (Optional)
 Clerks Max. 99 Pcs.
 Characters per PLU Max. 99 Pcs.
 Programmable data per PLU LF code, Tracking code, PLU name, Code, Unit Price, Total Amount, Price Unit,Fresh-Keeping Days, Tare, Barcodes, Department, Weighing, Packing Type, Message1, Message2, Label Type, Discount Mark, Logo and Etc.
 Barcode Type EAN13, EAN8, Interleaved 2/5, Code 128
 Storing Data Label Quantity 8 Pcs.
PLU Quantity 2000 Pcs.
Message Quantity 2000 Pcs.
 Communication Interfaces RS-232C and Ethernet
 Power Source AC 100~240V, 50~60 Hz
 Operation Temperature 0 °C ~ 40 °C
 Operation Humidty %5 ~ %85 (Non Condensing)
 Clerks Max. 99 Pcs.
 Clerks Max. 99 Pcs.
 Physical
 Width 364 mm
 Height 500 mm
 Length (Depth) 429,1 mm
 Weight -
